AS-49052 Monopole Blade Antenna

Overview

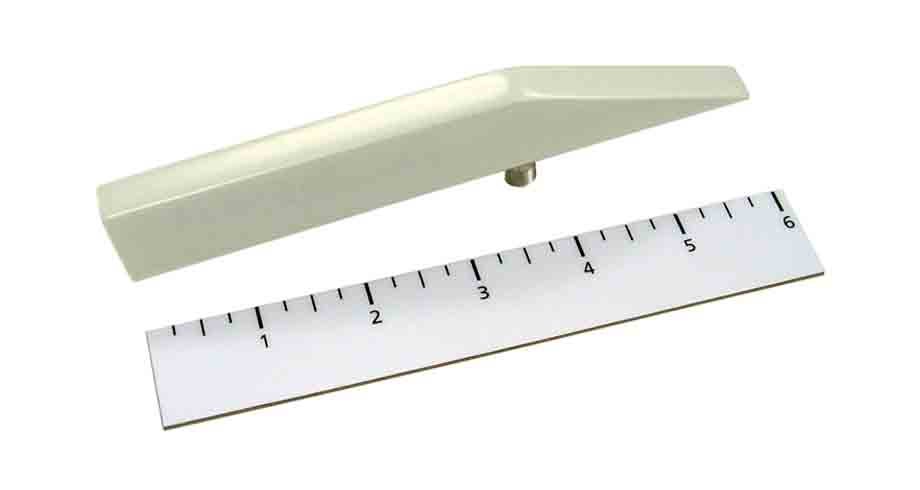

The AS-49052 was used as the flight termination system blade on the Atlas II Program. The AS-49052 is a tunable monopole blade antenna and is linearly polarized.

It was designed to maintain electrical performance when subjected to hostile environments. The antenna’s radiation patterns are dependent on the size and shape of the vehicle and where the antenna is located on the vehicle.

Features:

Space Qualified
Low Drag
Linear Polarization
Tunable

AS-49052 Antenna Specifications

Choose tab:

Electrical
Frequency Range	406 to 549 MHz
VSWR	2.5:1, maximum, over a 4 MHz band 1.5:1, maximum, over a 0.5 MHz band
Impedance	50 watts
Polarization	Linear
Pattern	Omnidirectional

Mechanical
Connector	TM Female
Weight	9.6 oz/272 g

Environmental

Temperature

700° F (371° C) operating for five minutes
1,500° F (816° C) for 20 to 30 seconds

Random Vibration

Duration/Axis	Freq. (Hz)	Amplitude
3.0 minutes	20-60	+6 dB/octave
	60-160	1.76 g/Hz
	160-200	Slope determined by end points
	200-600	1.32 g/Hz
	600-800	Slope determined by end points
	800-1200	2.933 g/Hz
	1200-2000	-18 dB/octave
	Overall	55.09 G_rms

Sine Vibration

BECO - Buzz	Sine (g, 0 to peak)
X-Axis	Y-Axis	Z-Axis
22	56	18
Sweep Rate:	Three seconds per octave, over the range of 50 Hz to 200 Hz
