Conformal Antenna Elements and Arrays

A Process Driven Approach to Design

Our team employs both analytical and experimental methodologies in the design process. First, we utilize computer modeling and simulation which predicts the antenna performance while minimizing R&D costs. Then, breadboard antennas and scale models confirm and refine the analytical models. Finally, measured data is automatically collected and tested in an advanced array simulation. L3Harris' process driven approach draws upon our experience and expertise to develop the most innovative conformal antenna designs.

Conformal Antenna Elements and Arrays

Fight-Qualified Conformal Antennas

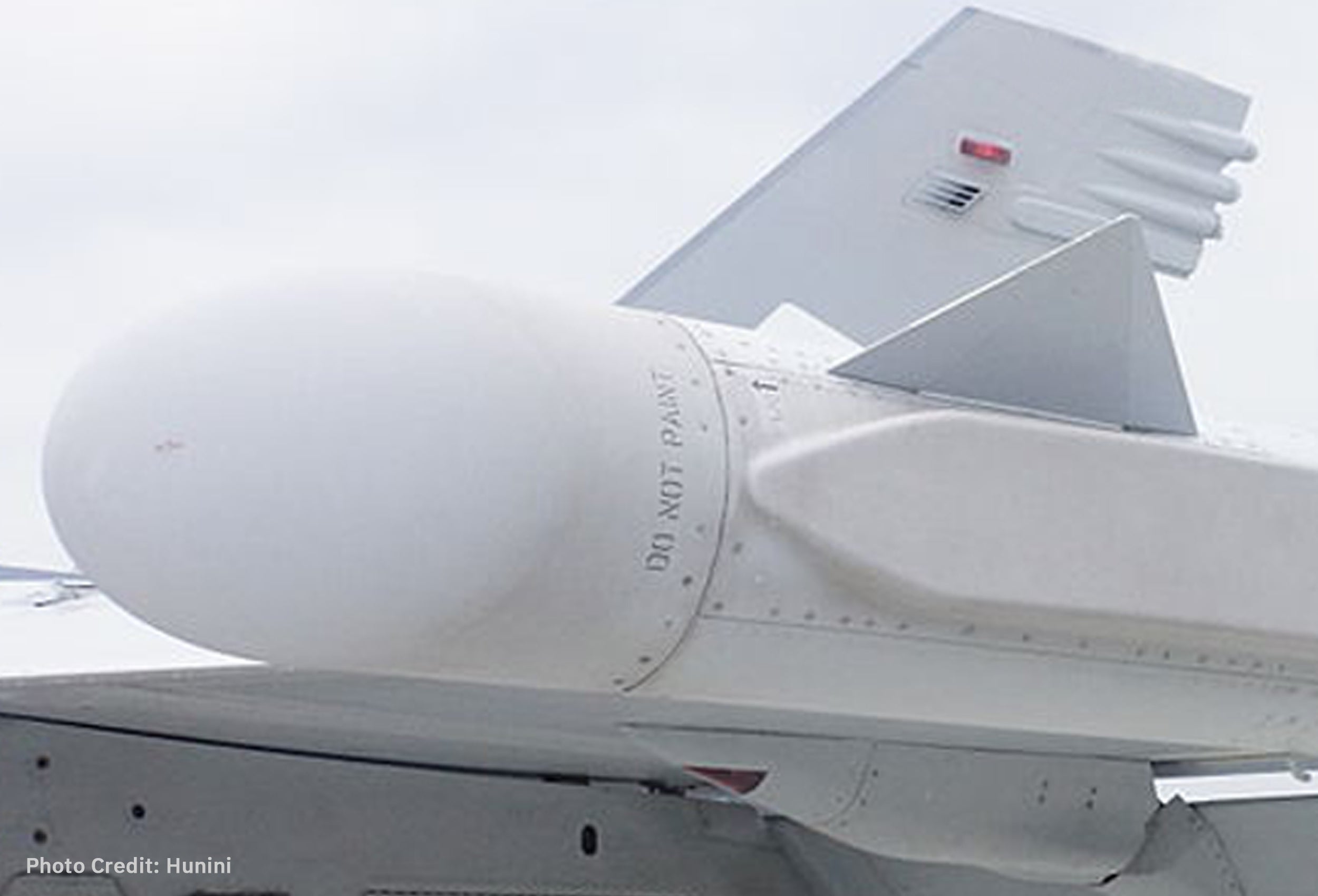

Operating in frequencies ranging from 20 MHz to 100 GHz, conformal antennas minimize aerodynamic drag by being mounted on or embedded in the curved surface of high-performance aircraft.

Delivering High-Performance Conformal Antennas

L3Harris is an industry leader in developing and delivering high-performance conformal antennas for all types of military aircraft, including:
  • Fighters, Bombers and other high-performance jets
  • Helicopters and Tilt-Rotor aircraft
  • Wide-body Tanker, Cargo, and Electronic Warfare (EW) aircraft
  • Unmanned aerial vehicles (UAVs)
L3Harris builds conformal antennas, arrays, interferometers, and multifunction apertures for the following missions:
  • Communications Intelligence (COMINT)
  • Communications, Navigations, and Instrumentation (CNI) applications
  • Direction Finding (DF)
  • Electronic Attack (EA)
  • Electronic Countermeasures (ECM)
  • Electronic Intelligence (ELINT)
  • Radar Warning (RWR)
  • Signals Intelligence (SIGINT)

RS230 Standard Quality Requirements Listing

  • Standard Quality Requirements
