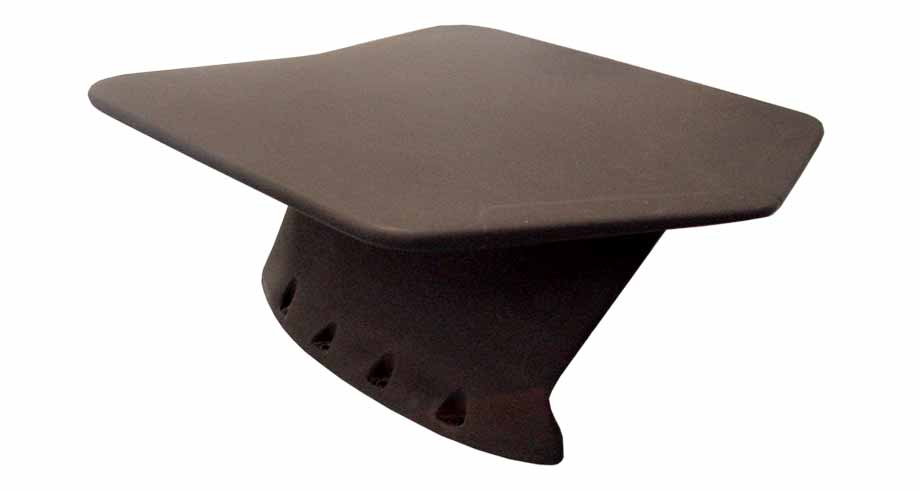

This lightweight unit has been designed with performance parameters suitable for deployment in high performance, executive class aircraft, and helicopters.
The antenna is constructed of a foam filled fiberglass housing which contains all component parts including the required phasing coupler.
The only external connections required are the radio input and external load termination (available option part number 1200018-001).
| Frequency Range | 240 – 400 MHz |
| VSWR | 1.5:1 |
| Gain | +6.3 dBic Nom +6.0 dBic typical |
| Impedance | 50 Ohms |
| Polarization | Right hand circular |
| Radiation Pattern | Omnidirectional in azimuth. Stub pattern in elevation. |
| Lightning Protection | MIL-B-5087 |
| Power Handling | 200 watts CW |
| Connectors | N Female |
| Weight | 6.2 lbs (2.81 kg) |
| Drag | 3.5 lbs at 45,000 ft, Mach 0.78 |
| Finish 1501341-002 1501341-003 |
Black White |
| Available Option 1200018-001 |
Resistive load termination |
| Operating Temperature | -25°F to +200°F |
| Storage Temperature | -54° to +250°F |
