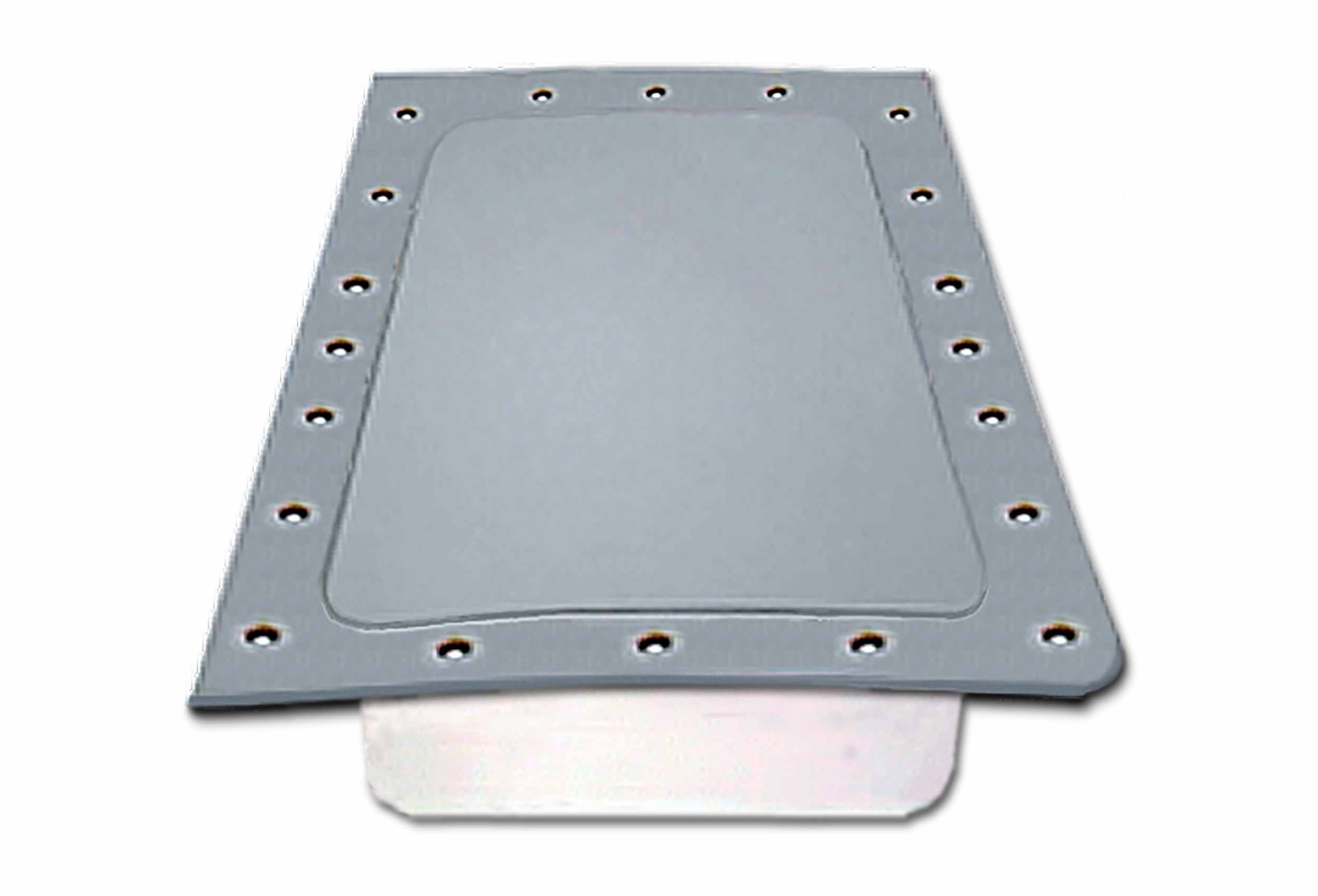

The assembly consists of an aluminum housing, dielectric radome, and aperture-coupled radiating element, which provides consistent performance even at operating temperature extremes.
The antenna is a sealed assembly and is protected against moisture intrusion by a closed-cell, expanding polyurethane foam.
| Frequency Range | 74.85 – 75.15 MHz |
| Center Frequency | 75.0 MHz |
| VSWR Midband (74.8 – 75.2 MHz) |
<1.5:1 <5.0:1 |
| Gain | -12 dBi |
| Impedance | 50 Ohms |
| Polarization | Horizontal |
| Power Handling | Receive Only |
| Connector | Type TNC |
| Weight | 1.5 lbs max |
| Finish -001 -002 -003 -004 |
Light Gray Dark Gray Flat Gray Gloss White |
| Qualified to MIL-STD-810 |
