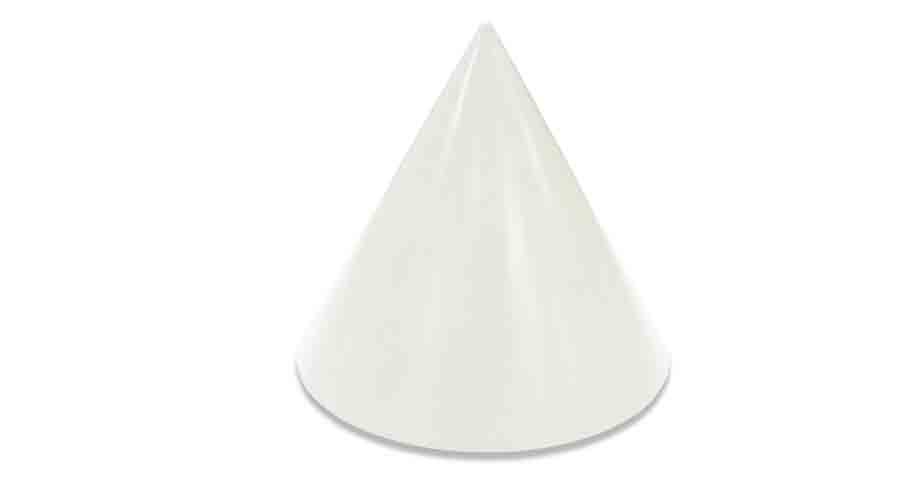

AS-48905 Omni-Directional Antenna

Overview

This circularly-polarized omnidirectional antenna with broad frequency capability is ideal for applications where hemispherical coverage is required.

The antenna is suitable for satellite, ground, ship or airborne requirements. It may be used in communications or with direction-finding systems.

Features:

  • Circular Polarization Over Hemisphere
  • Rugged Construction
  • Space, Airborne, Ship, Tower, or Vehicular Application
  • Broad Frequency Coverage

AS-48905 Antenna Specifications

Electrical
Frequency Range 1 to 12 GHz
VSWR 2.5:1
Gain 0 dBic avg
-2.0 dBic min
Impedance 50 ohms
Polarization RH or LH circular
Beamwidth 3 dB 150° to 200° above -3 dBcil
Axial Ratio 2 dB max on axis
Deviation from omni ±5 dB (in principal elevation planes over hemisphere)
Power Handling Receiver or low power source
Mechanical
Connector SMA Female
Weight 1.5 lbs/0.68 kg
Environmental
Designed to meet MIL-E-5400
