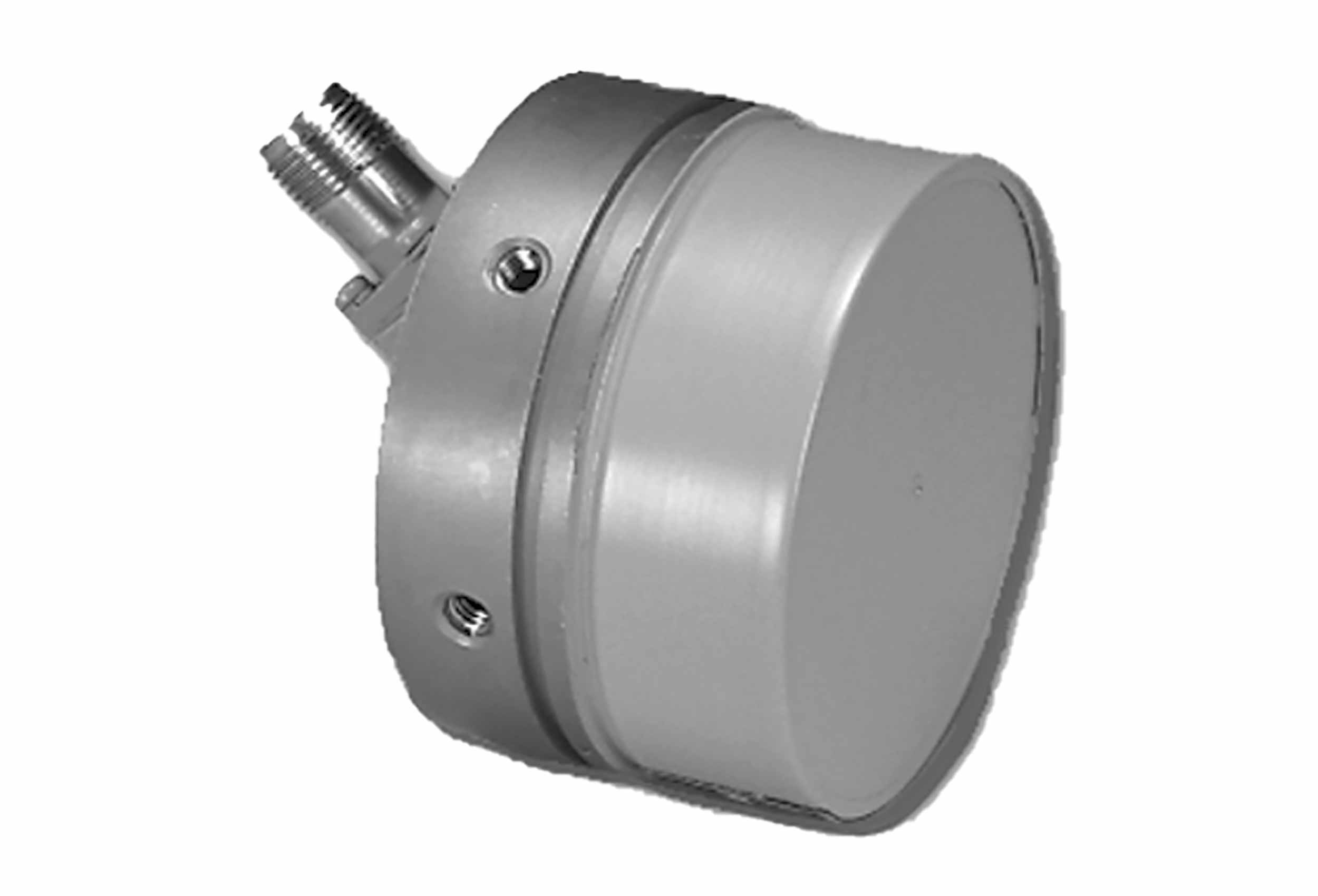

AM-423 Antenna Specifications
| Frequency Range | 2.0 – 18.0 GHz |
| VSWR | 3.0:1 nom |
| Gain | +1.0 dBli nom |
| Gain Tracking | ±1.0 dB on axis |
| Beam width (3 dB) | 75° ±15° typ |
| Polarization | Circular (LHCP or RHCP) |
| Axial Ratio Boresight ±45° |
≤2.0 dB on axis ≤4.0 dB |
| Squint | ±5° |
| Power Handling | 1 watt CW |
| Connector | Precision TNC female, 40° angle to mounting surface |
| Weight | 7.0 oz. |
| Design Specification | 90 G vibration, 120 G shock |
| Finish | Lacquer, color gray, No. 2632 |
| Option: | Available with hemispheric radome AM-423-01 (RHCP) AM-423-02 (LHCP), basic antenna without radome AM-423-03 RHCP and AM-423-4 LHCP; Also AM-423-4A available with TNC female, in line with boresight and having LHCP. |
