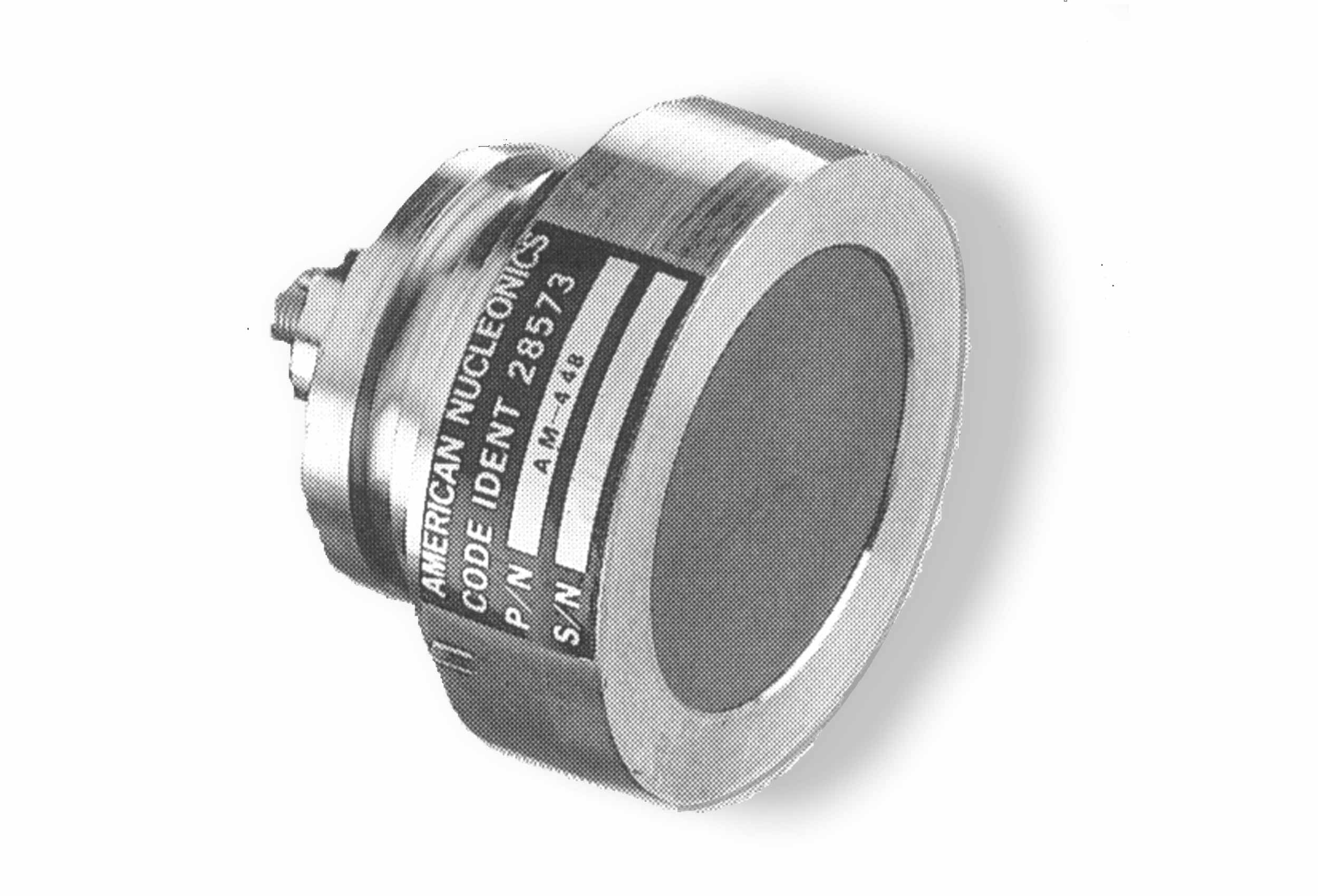

AM-448 Antenna Specifications
Download the AM-448 Antenna Spec Sheet| Frequency range | 2.0 – 18.0 GHz |
| VSWR | 2.0 – 3.0 GHz 3.5:1 3.0 – 18.0 GHz 3.0:1 max |
| Gain | +1.0 dBli nom |
| Gain tracking | In sets of 5 antennas, ±1.0 dB from 2.0 – 18.0 GHz on axis |
| Beam width (3 dB) | 75° nom |
| Polarization | Circular, LHCP or RHCP available |
| Axial ratio boresight ±45° |
≤2.0 dB ≤2.0 dB |
| Squint | ±6° |
| Power handling | 1 W CW |
| Connector | SMA female at 40° angle to boresight |
| Weight | 1 lb 7 oz. |
| Finish | Exterior of antenna made from no. 316 stainless steel, except for radome, connector and hardware |
| Option | LHCP or RHCP available |
