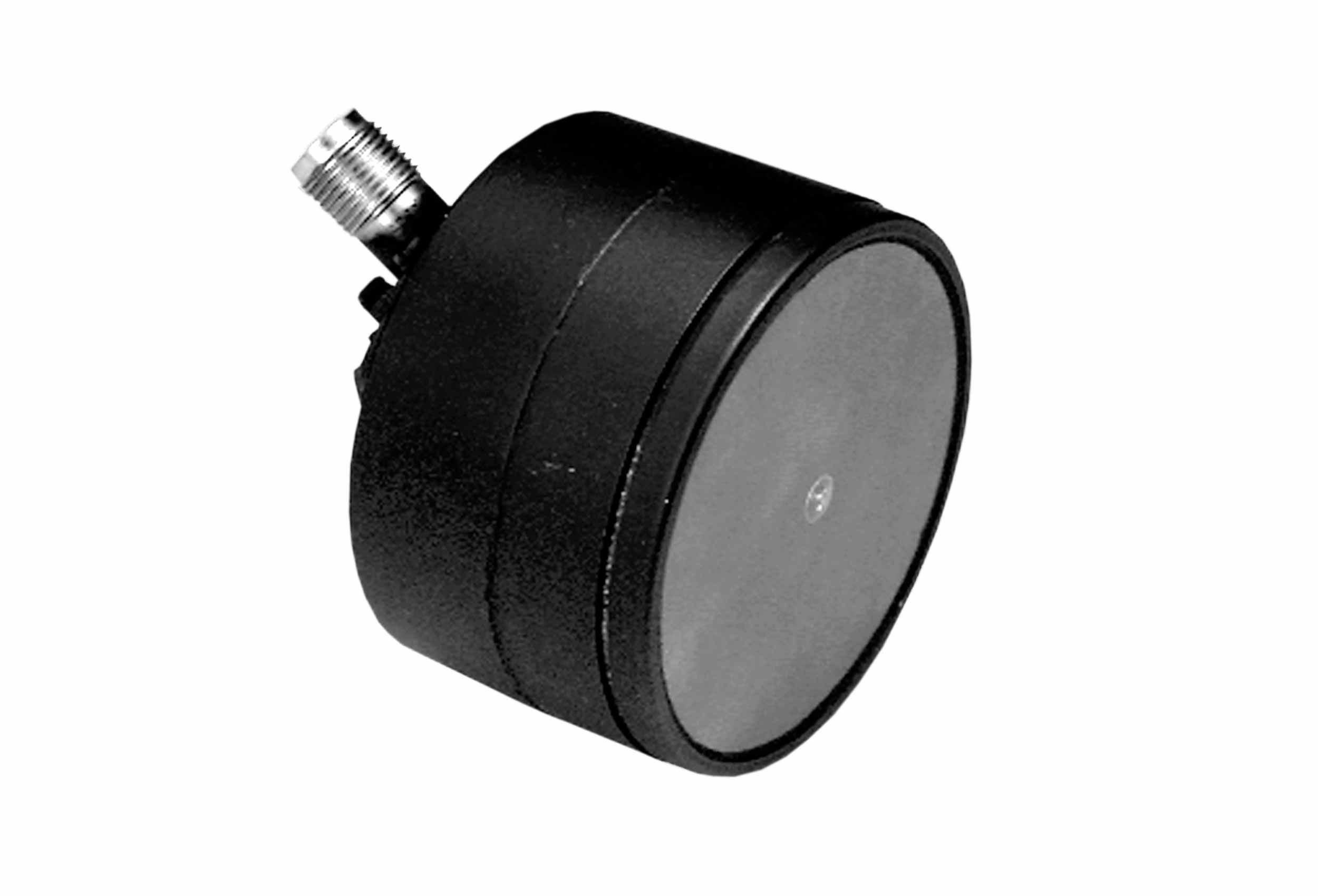

The AM-454 Antenna Specifications
Download the AM-454 Antenna Spec Sheet| Frequency range | 2.0 – 18.0 GHz |
| VSWR | Less than 3.0:1 |
| Gain | +1.0 dBli nom |
| Gain tracking | ±1.0 dB on axis |
| Beam width (3 dB) | 75° ±15° typ |
| Polarization | Circular, LHCP or RHCP available |
| Axial ratio boresight ±45° |
≤1.5 dB ≤3.0 dB |
| Squint | Typically ±4° |
| Power handling | 1 W CW |
| Connector | Precision TNC female, 50° angle to mounting surface |
| Weight | 7.0 oz. |
| Finish | Paint, lusterless black, color no. 37038 |
| Design specification | 90 G vibration, 120 G shock |
