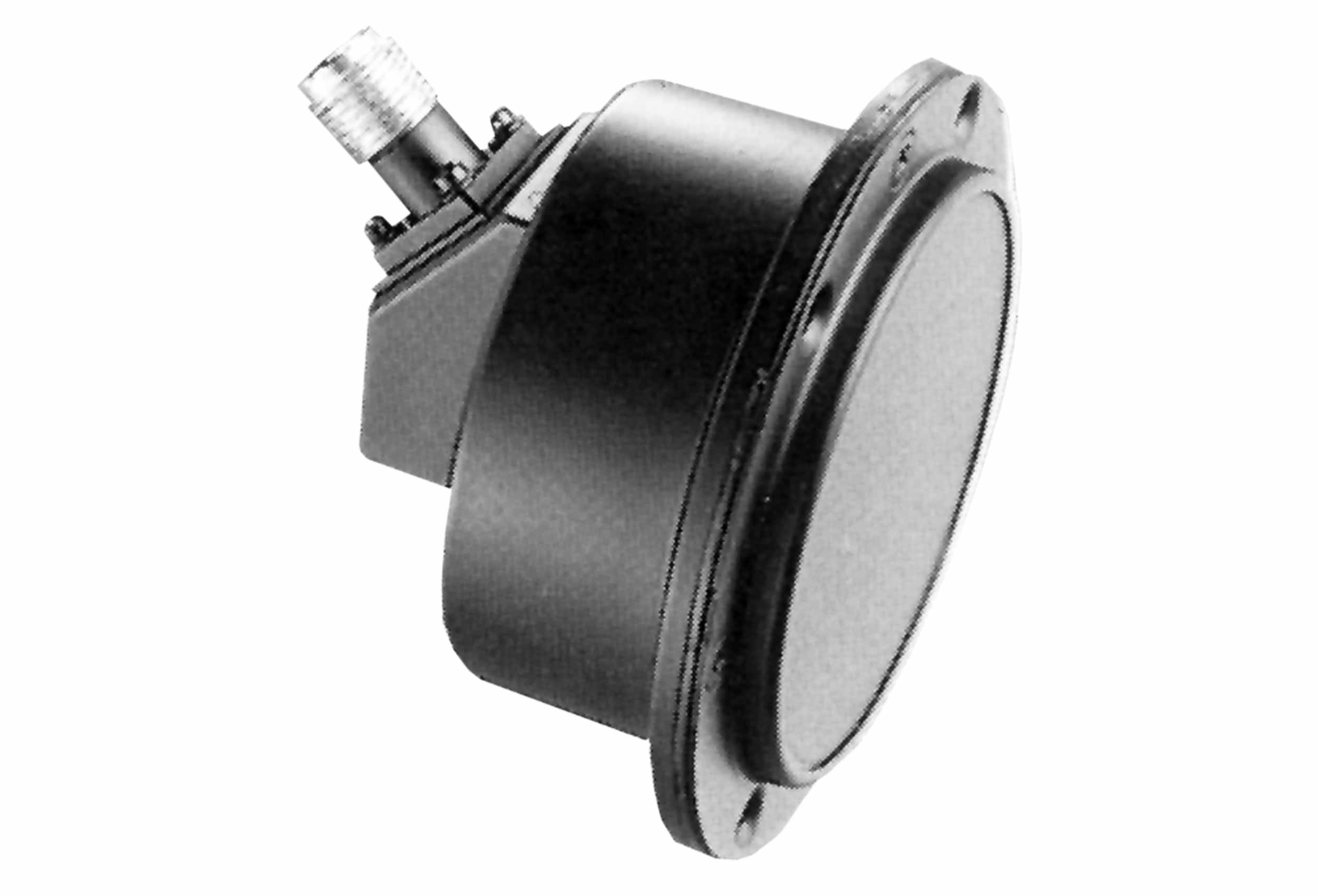

AM-457 Antenna Specifications
Download the AM-457 Antenna Spec Sheet| Frequency range | 2.0 – 18.0 GHz |
| VSWR | 3.0:1 nom |
| Gain | +1.0 dBli nom |
| Gain tracking | ±1.0 dB on axis |
| Beam width (3 dB) | 75° typ |
| Polarization | LHCP or RHCP available |
| Axial ratio boresight ±45° |
≤1.5 dB ≤2.0 dB |
| Squint | ±6° |
| Power handling | 1 W CW |
| Connector | Precision TNC female, 40° angle to boresight |
| Weight | 5.8 oz. max |
| Finish | Semi-gloss black enamel, color No. 27038 |
| Design specification | 70,000 ft altitude |
| Option | LHCP or RHCP available |
