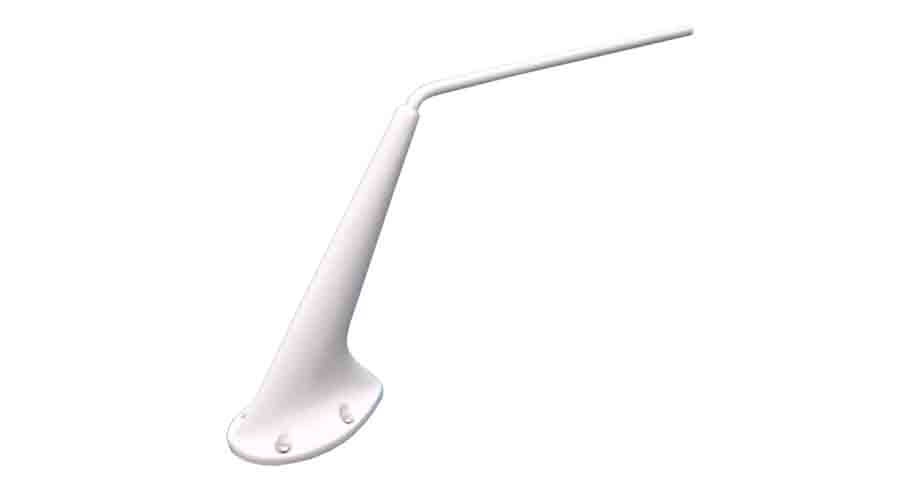

This uniquely designed antenna offer mechanical strength and high-electrical efficiency to provide maximum reliability and full 118-152 MHz transceiver operation. This extended frequency coverage also allows use with various VHF satellite-link systems. The lightweight profile is unobtrusive, resists icing and offers low drag. Measuring under 8” tall, the C199-1-1 is ideal for bottom installation aircraft with minimal ground clearance.
C199-1-1 Antenna Specifications
| Frequency range | 118 – 152 MHz |
| VSWR | 2.5:1 |
| Impedance | 50 ohms |
| Polarization | Vertical |
| Radiation Patterns | Omnidirectional |
| Power handling | 35 watts |
| Connector | BNC Female |
| Weight | 12 oz. (0.34 kg) |
| Finish | White polyurethane |
| Draq | Consult with factory |
| TSO | C37d, C38d |
| D0160c ENV CAT | F2-ABCXWFDXSXXXXXXXXXX |
