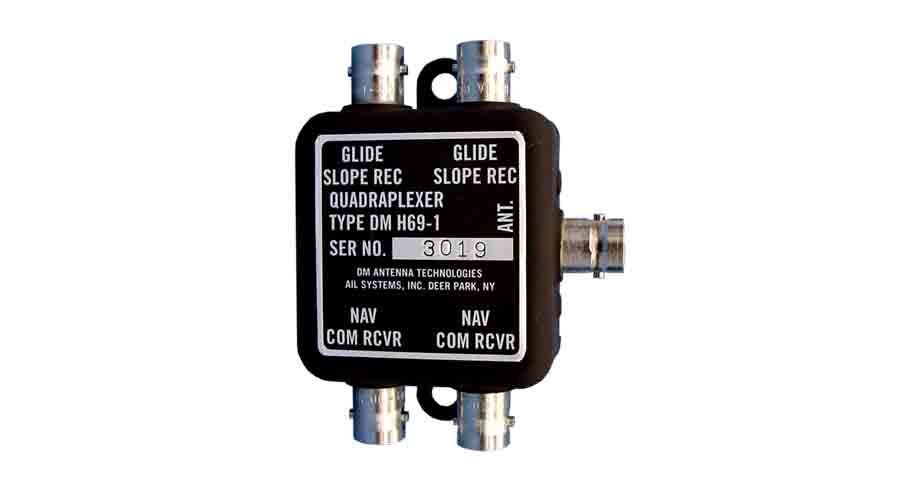

The ruggedly built H69-1 is housed in an aluminum case and all circuit components are fully encapsulated for vibration protection as well as waterproof protection.
H69-1 Antenna Coupler Specifications
| Frequency range | 108 – 118 MHz 329 – 335.3 MHz |
| VSWR | 2.0:1 |
| Impedance | 50 ohms |
| Isolation | VOR 18 dB min VOR-GS 20 dB min GS-GS 18 dB min |
| Insertion loss | VOR 1 dB max GS 1 dB max |
| Power handling | Receive only |
| Connector | BNC male |
| Weight | 4 oz max |
| MIL-E-5400 |
| CLASS II |
| Vibration 1A |
