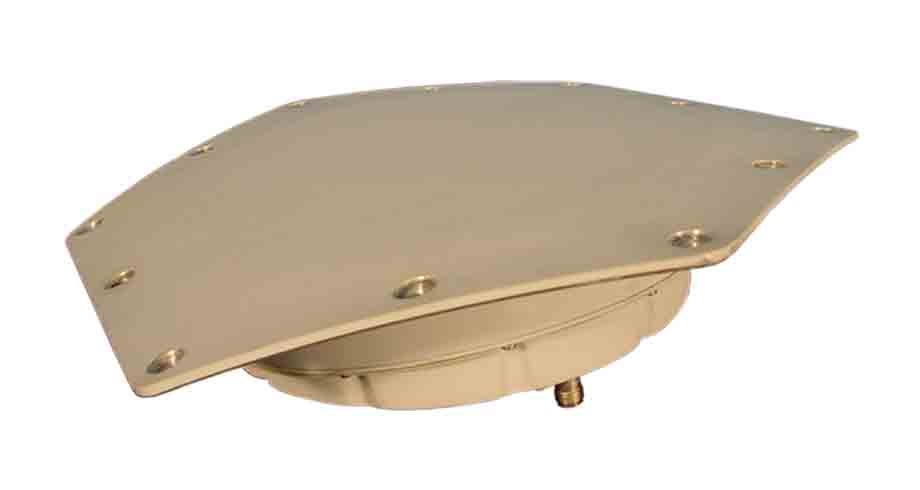

Q134 Conformal Broadband Antenna

In addition to the broad operating bandwidth, the Q134 also provides a significant reduction in Radar-Cross-Section versus conventional blade designs. The conformal aperture features advanced treatments to further reduce the signature of this antenna.

Combining state-of-the-art antenna performance with a fully conformal aperture allows the Q134 to replace a wide range of standard antennas with a single solution.

Q134 Antenna Specifications

Electrical
Frequency range 600 - 1100 MHz
1150 - 2200 MHz
Polarization Vertical
Radiation pattern Omnidirectional in Azimuth, Monopole Equivalent in Elevation
Power handling 100 watts CW
Mechanical
Connector Type TNC Female
Weight 6 lbs. max
Military Qualified to MIL-T-5422 and MIL-E-5400
