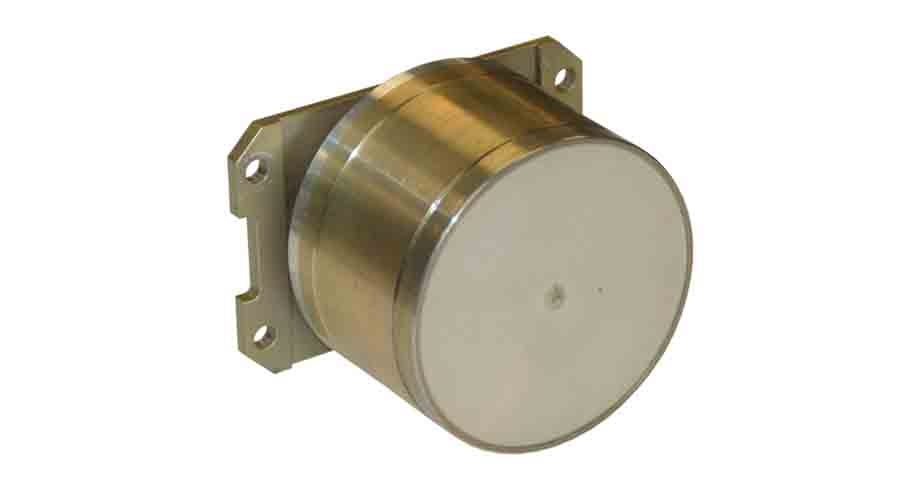

The Q176 Series are available in a standard 3-hole mount (model Q176-3) or pinned to a precision mounting-bracket (model Q176-2) for direct installation in a customer supplied Interferometer housing. The latter configuration provides improved unit-to-unit phase tracking for high accuracy interferometer applications.
Q176 Series Antenna Specifications
| Frequency range | 2.0 - 6.0 GHz |
| VSWR | 2.5:1 max |
| Gain | 2.0GHz -4.0 dBil 4.0GHz 0.0 dBil 6.0GHz 0 dBil |
| Polarization | RHCP |
| Amplitude tracking Boresight +/-45 Degrees |
1dB RMS 1.5dB RMS |
| Phase tracking Boresight +/-45 Degrees |
6 degrees RMS 10 degrees RMS |
| Beamwidth (3dB) | 80 degrees nom |
| Axial ratio | 3dB max at boresight (over 90% of band) |
| Power handling | Receive only |
| Connector | SMA |
| Weight | 0.6 lbs (With mounting bracket) |
