An integrated radio frequency (RF) module provides preamplification, filtering and switching for direct interface to a receiver. The switches allow operation of either the RHCP or LHCP sub arrays or a calibration path. The RF modules are operated by a RS422 controller, which also stores calibration data.

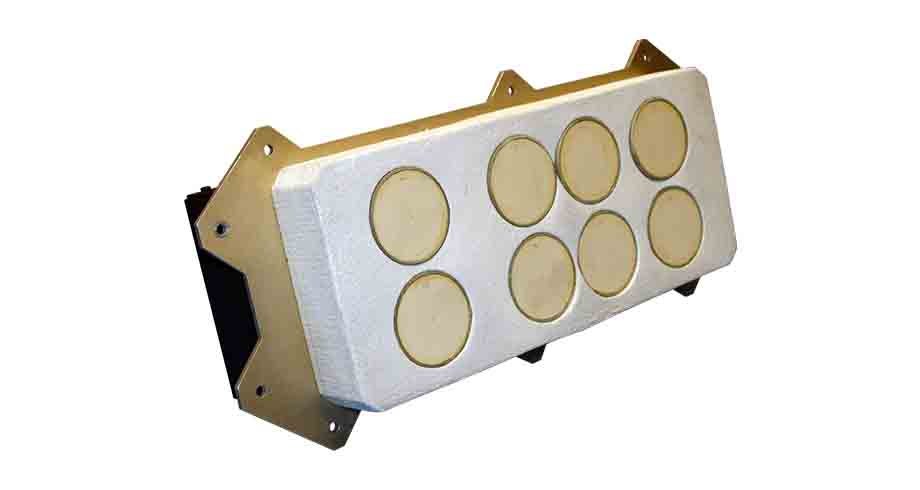

The SE131 has been designed to meet the stringent requirements of today’s manned and unmanned military platforms.
| Frequency range | 2.0 to 18.0 GHz |
| VSWR | 2.0:1 |
| Gain | -6.6 - 0 dBiL typical |
| Polarization | RHCP/LHCP switchable |
| Azimuth | ±45° |
| Phase tracking | 6-7 degrees RMS typical |
| Electronic gain | 28 dB (typ) |
| Electronic noise figure | 8 dB |
| 1 dB compression | +20 dBm |
| IP3 | +25 dBm (typ) |
| Power handling (DC voltage) | 28 VDC / 25 watts |
| Connector | RF: SMA female Power: D38999 Control: D38999 |
| Command signal | RS422 |
| Dimensions (in/cm) | 16.0W x 7.0H x 5.25D (40.64 x 17.78 x 13.21) |
| Weight | 9.5 lbs |
| Finish | MIL STD 810F |
