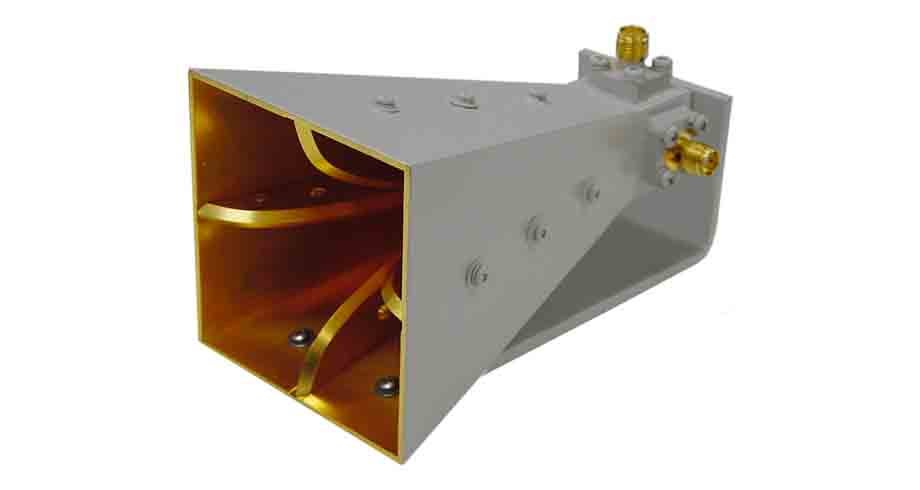

AS-48435 Quad-Ridged Horn Antenna

This pyramidal horn has two orthogonally placed input feeds which provide the capability for simultaneous horizontal and vertical polarization and, with the addition of an optional 90° hybrid, selectable right- or left-hand circular polarization. This antenna is ideally suited for feeding high gain, long focal length, reflectors for surveillance and direction-finding applications. It is also designed for application as a primary radiator and is capable of handling 10 Watts CW and 0.75 kW peak RF power for transmitting applications.

Features:

  • High gain, directional patterns
  • Simultaneous dual linear polarization
  • RF power handling
  • Test, surveillance, and direction-finding applications

AS-48435 Antenna Specifications

Electrical
Frequency Range 8.0 - 12.0 GHz
VSWR 3.0:1 (Nominal)
Gain 10 - 12 dBiL (Typical)
Polarization Simultaneous horizontal and vertical
Simultaneous RHCP and LHCP w/90° hybrid
Beamwidth
  E-Plane
  H-Plane

40°- 28° (Typical)
55°- 26°
Cross Polarization -20 dB (Nominal)
Front to Back Ratio 20 dB
Power Handling 10 watts CW, 0.75 kW peak
Mechanical
Connector SMA Female
Weight 1.0 lbs/0.5 kg
