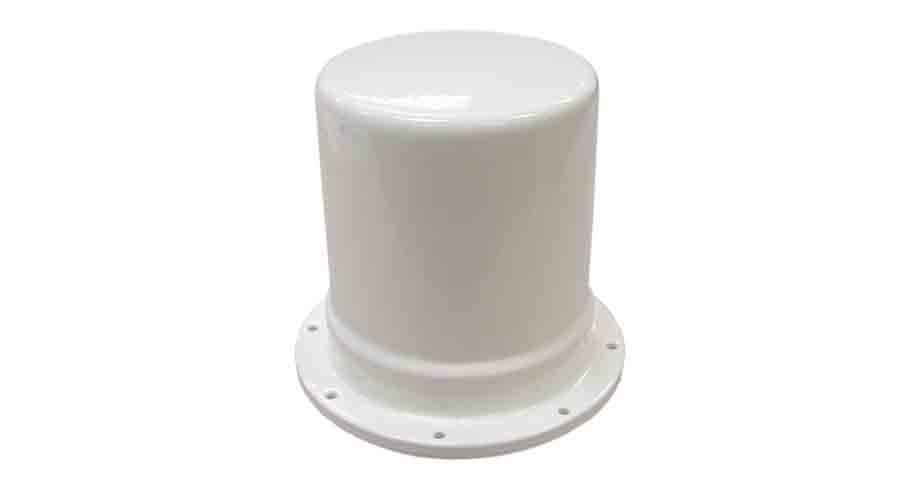

AS-48976 Biconical Omnidirectional Antenna

Overview

The AS-48976 Omnidirectional Antenna is a broadband antenna designed for electronic warfare applications.

The antenna features a compact, rugged biconical design that is ideal for military applications. The antenna has been installed in airborne, shipboard and ground-based platforms.

AS-48976 Antenna Specifications

Electrical
Frequency Range 2 to 18 GHz
VSWR 3.0:1 max
Gain -4.0 dBi min
Impedance 50 watts reference
Polarization 45° Slant Linear
Beamwidth, 3dB (BW) 10°, min at 18.0 GHz
Deviation From Omni ±3.0 dB max
Power Handling 15 watts CW max
Mechanical
Connector SMA Female
Weight 8 lbs 5 oz/3.77 kg
