Marine Consoles

Overview

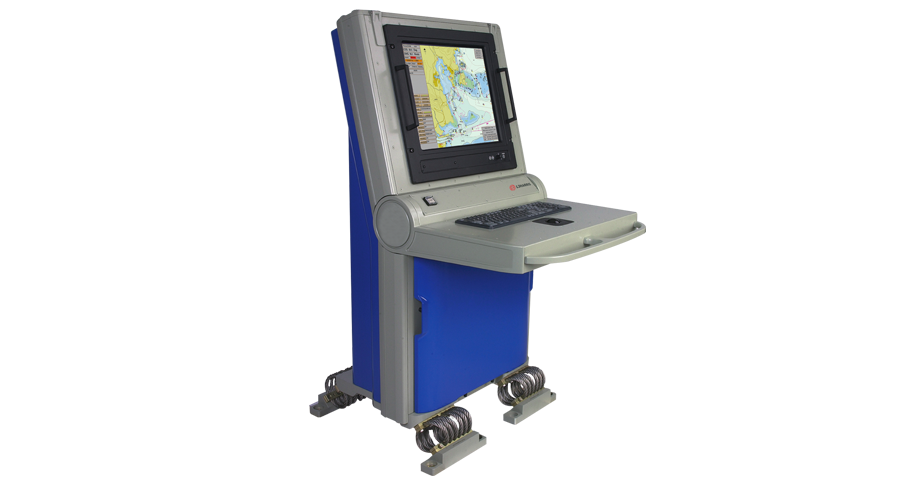

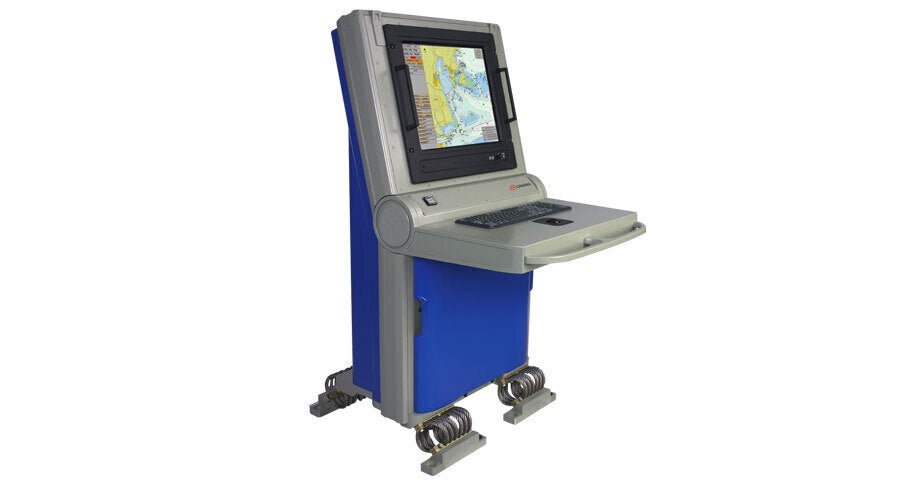

The Standard Marine Console is of modular design allowing multi-console configurations to be readily assembled. A range of connection segments are available that allow unique configurations to be developed to suit customer needs. These segments may also be used to house traditional instrumentation or communications equipment. Our systems engineering staff works with the customer to achieve the optimum design integration for the application.

The console’s lightweight and compact size make it ideal for upgrade and back-fit applications where legacy operator consoles are being replaced. The single screen console is completely deck-mounted while the dual screen configuration requires the fitting of a top brace. The console can be completely installed and maintained from the front allowing the unit to be installed close to bulkheads, freeing up space in congested compartments.

Product Specifications

FEATURES

  • Compact ergonomic design
  • Light weight
  • Front access
  • PC or VME processor options
  • U.S. Navy MIL SPEC compliant using COTS equipment
  • Dual monitor configuration available

ADVANCED MODULAR CONSTRUCTION

  • Lightweight: Aluminum and composite materials
  • Compact size: Easily fits into small/congested compartments
  • Adaptable: Provisions for hosting traditional controls and instrumentation
  • Modular design: Permits multiple-bay console workstation to be assembled
  • Shock Qualified

TECHNICAL SPECIFICATIONS

  • Color display: High resolution (1600x1200/UXGA), 20.1” LCD
  • Input devices: Standard keyboard and 50 mm (2”) trackball
  • Processor: PC or 6U VME format
  • Sound: 2W speaker
  • Network: Two or more 10/100/1000Mbps copper or fiber optic ethernet ports.

AVAILABLE OPTIONS

  • Touch screen
  • Hardwired emergency stop push-buttons
  • External shock mounts
  • Color to customer specifications
  • LCD upgrade to 23" (1920 x 1080 / full HD)

ELECTRICAL CHARACTERISTICS

  • Power consumption: 300W typ.
  • Voltage: per NATO STANAG 1008 limits
    • 24 VDC nominal; or
    • 115/230 VAC, 50/60 Hz.

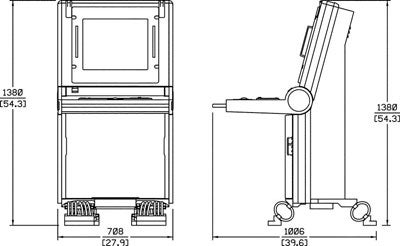

Marine Consoles Diagram

DIMENSIONS AND WEIGHT

  • Height: 1.4 m (55”)
  • Width: 0.7 m (28”)
  • Depth: 1.0 m (39”)
  • Weight: 170 kg (375 lb)

ENVIRONMENTAL CHARACTERISTICS

  • Operating temperature: 0°C to +50°C
  • Non-operating temperature: -20°C to +70°C
  • Humidity: up to 95% R.H. condensing
  • Vibration: MIL-STD-167-1, 4-25 Hz
  • Shock with isolators: MIL-S-901D Grade A, Class II
  • Shock without isolators: 15g • Enclosure degree of protection: IP 23
  • EMI: MIL-STD-461E for surface ships

RELIABILITY

  • MTTR < 30 minutes (front access)
  • MTBF > 6,6000 hours

QUALIFICATION

  • MIL-STD-167-1 (Vibration)
  • MIL-S-901D (Shock)
  • MIL-STD-461E (EMI)
  • MIL-STD-810F (Temperature and Humidity)
