Overview

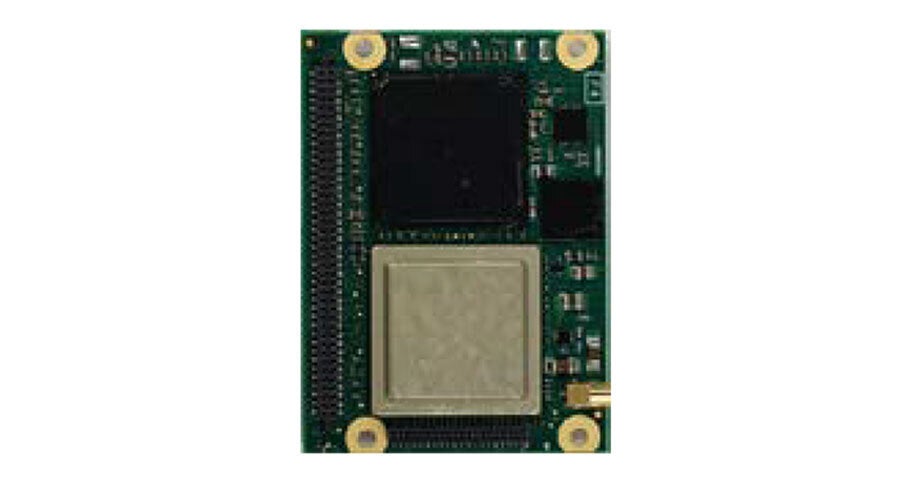

This receiver excels at navigating and tracking GPS signals from Earth’s surface to orbital altitudes at hypersonic speeds, delivering both a position, velocity and time solution and line-of-sight observables. The HDA has flown around the Earth, delivering exceptional accuracy and dependability. Engineered to meet the demands of the most challenging missions, the TruTrak-M HDA stands out as a reliable and accurate navigation solution.
Key Features and Benefits
- Compact Design: Utilizes the Type II form factor with specialized software tailored for space applications as well as high dynamic applications
- MGUE Standard Connector: Utilizes the 80-pin I/O connector in line with MGUE standards
- Dual Frequency: Tracks C/A, Y and M signals on both L1 and L2 frequencies for robust navigation
- Super High-Altitude Navigation: Accurate navigation at altitudes up to 8000 Km
- Line-of-Sight (LOS) Observables: Delivering line-of-sight (LOS) observables, including Pseudorange and Carrier Phase at 10 Hz
- Position, Velocity and Time (PVT) Data: Outputs PVT data at a frequency of 10 Hz for enhanced performance
- Direct Signal Acquisition: Enables the direct acquisition of Y and M signals
- Field Reprogrammable: Incorporates a field reprogrammable design, allowing for future updates with minimal disruption to system operations
- Security Certified: Fully security certified and approved, supporting unclassified when keyed operations
